Wealth manager integration: Anchorage Digital API keys and sandbox testing

Prior to setting up your API keys for sandbox testing or production, review these key concepts and steps:

• API permission groups
• Wealth manager - master API key
• Shared API key
• Signing requests with your API key
• Sandbox testing considerations

API permission group

Before generating an API key, configure the specific permissions it requires. This is called an API Permission Group. Enabling the correct permissions ensures the API key can perform all necessary functions.

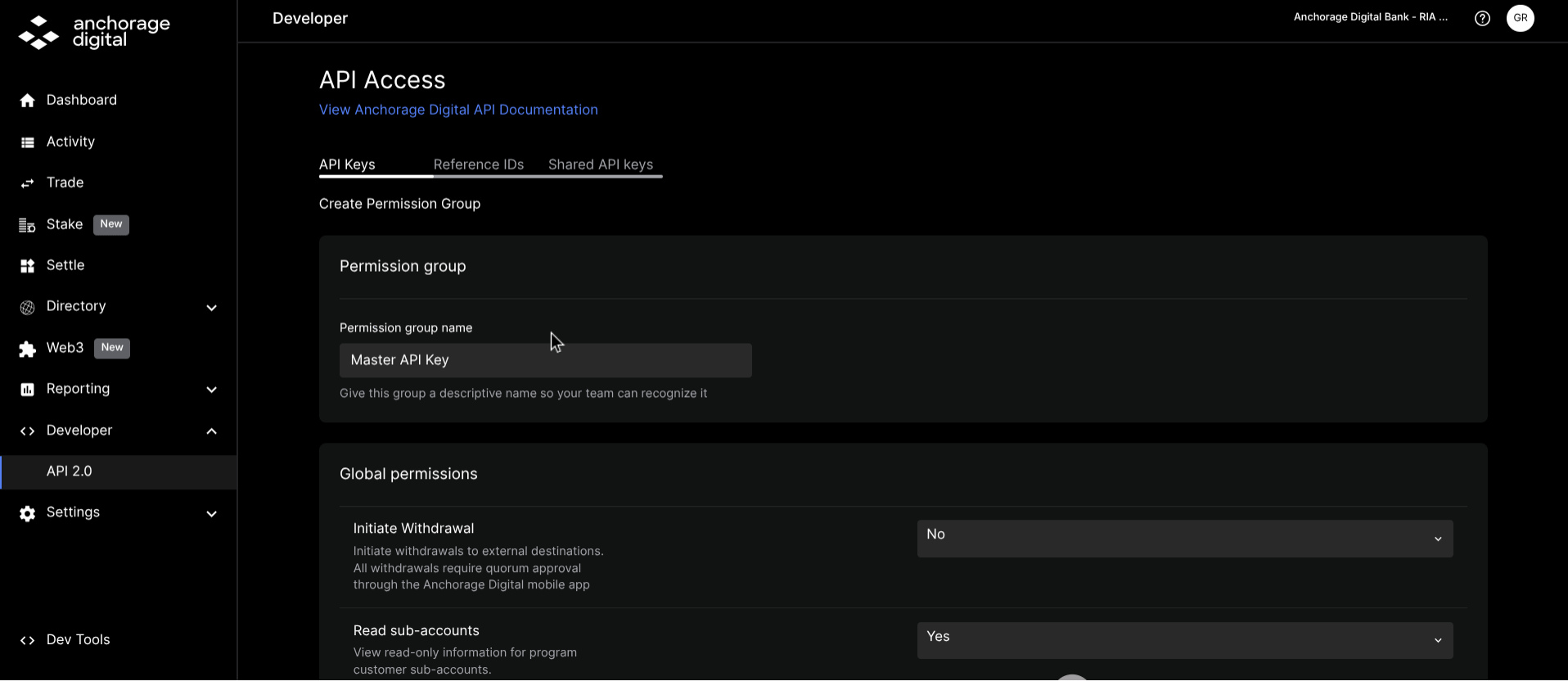

Creating an API permission group:

1. Navigate to the API 2.0 Developer page on the Anchorage Digital dashboard.
2. Scroll down to API permission groups and select "create a new group."
3. Name the key and enable the following permissions:

Note: Once you submit this permission group for quorum approval, you will need to endorse this operation using the iOS app to achieve quorum. Then, Anchorage Digital will perform a risk review analysis and approve the permission group before you can proceed to create an API key tied to this permission group.

Generating the API key

After the above steps are completed, you can create the wealth manager - master API key for your integration. Follow the steps outlined below:

Step 1: Generate a unique Ed25519 public/private key pair

# https://pypi.org/project/PyNaCl/

import nacl
import nacl.signing
import secrets

seed = secrets.token_bytes(32)

# Generate a new random signing key
signing_key = nacl.signing.SigningKey(seed)

# Obtain the hex-encoded signing key
print('Signing key:')
print(signing_key.encode().hex())

# Obtain the hex-encoded verify key for the given signing key
print('Public key:')
print(signing_key.verify_key.encode().hex())

Example keys:

Signing key: 9afeef68d0627eaeb1f40767f3913cf6da20e59caa49342a93b7b4786cae4a48
Public key: 92ee13655b4f599678203a7785f1cacefa71ccbdca793fcf5cb46b6af6619974

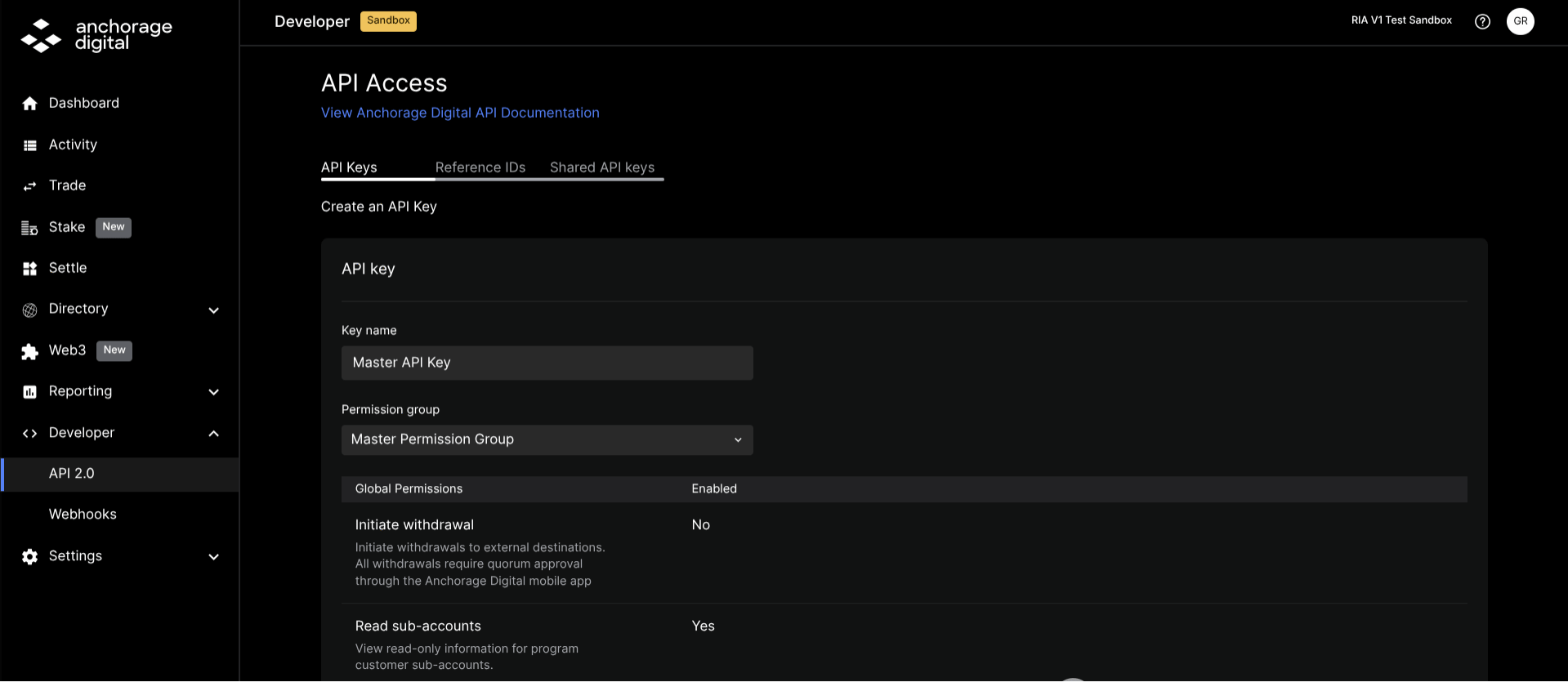

Step 2: Create the master API key

Navigate to the Developer API 2.0 page and use the public key to generate the API key using the permission group from Step 1.

❗️

Note: Ensure you copy the API key immediately

This key will not be available again to anyone on the account once you move on from this screen. If you lose the key, you will need to deprecate/revoke access and create a new key. For more information, please refer to the T&Cs regarding lost key API access.

Example API Key (not active): d0f9fa0df7f77e9767058b89b03e7dcdbe692d9ce7c670518aee74e06a265cad

👍

Pro-tip: Use read-only keys for other third-parties

If you need to generate a read-only API key for an external third-party vendor (e.g. data aggregation, reconciliation, etc.), ensure you provision the key with read-only permissions.

You do not need to generate a key using an Ed25519 key pair if it is read-only. You can opt to just generate the API key.

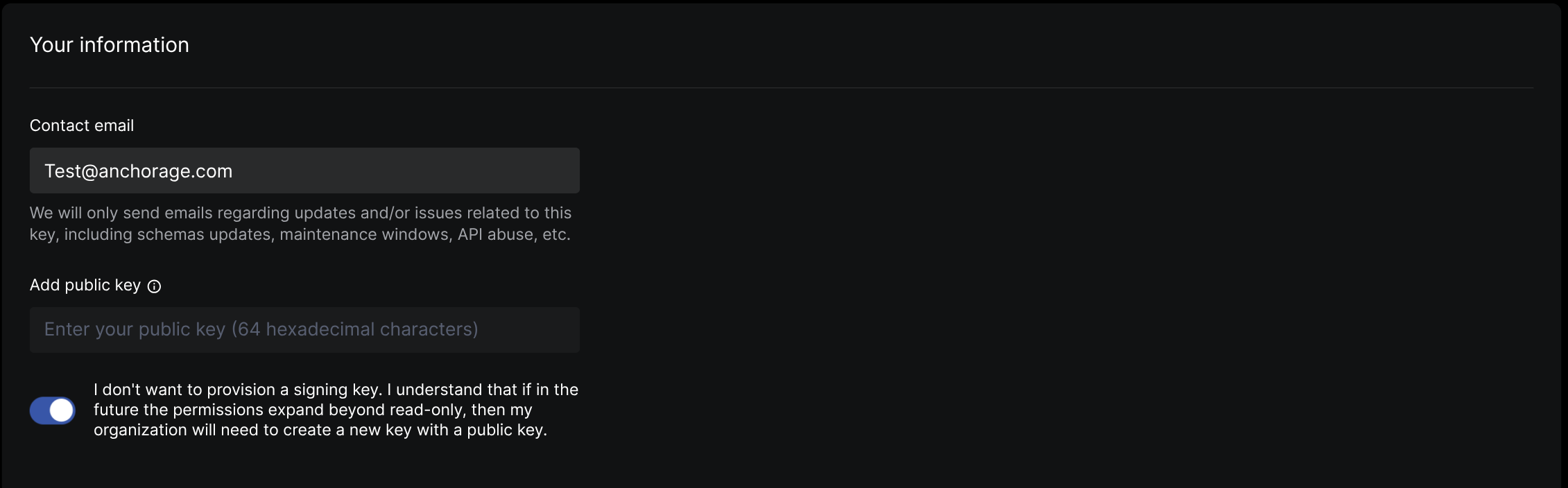

• Use the toggle to select - "I don't want to provision a signing key."

Create the shared API key for Anchorage Digital

Next, you will need to create the shared API key. This will be a permission group and API key, provisioned by the wealth manager for Anchorage Digital to leverage for the purposes of settling trades on their behalf.

To generate this, follow the steps below:

Step 1: Navigate to the developer - API 2.0 page

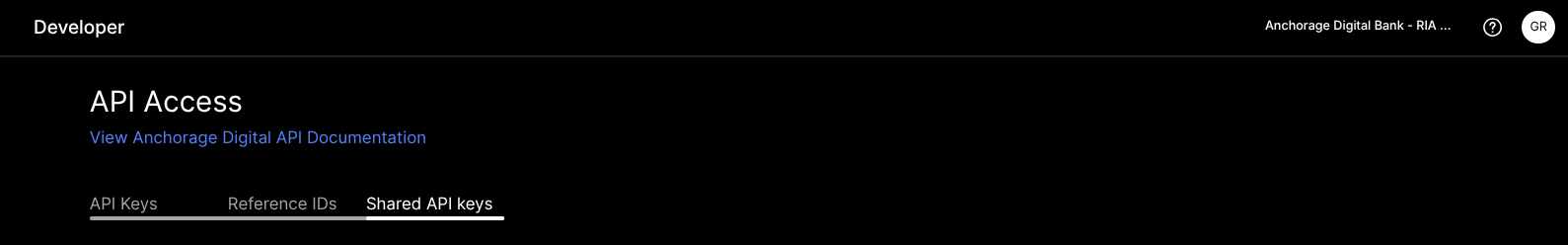

Step 2: Navigate to the "shared API keys" tab on the top navigation bar

Step 3: Accept the terms and conditions

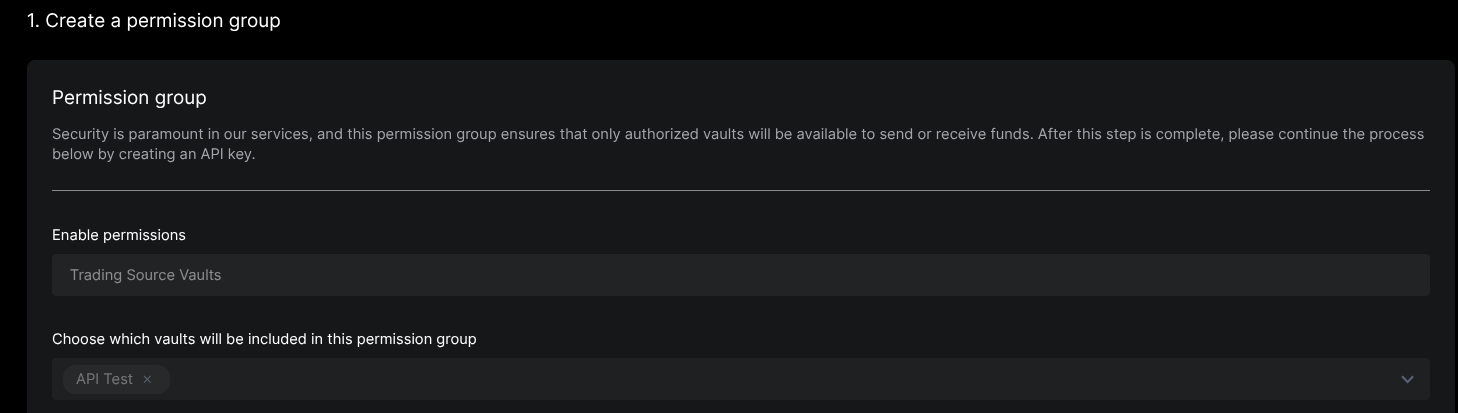

Step 4: Create the permission group

This will be pre-configured with the correct information. Once you select the drop-downs, quorum approve the operation and wait for Anchorage Digital to complete its risk review and approval before proceeding.

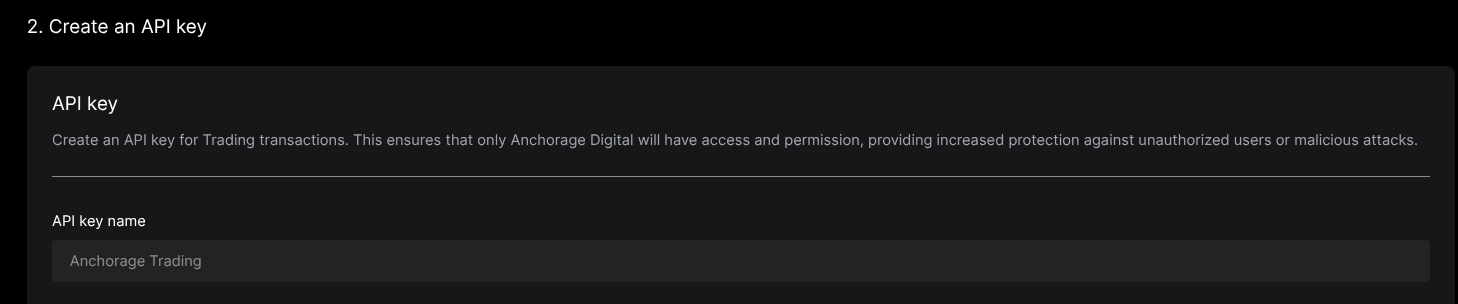

Step 5: Create the shared API key

This step also requires a quorum approval and a risk review by Anchorage Digital. However, it will not require any Ed25519 key pair, as Anchorage Digital will own and manage this key.

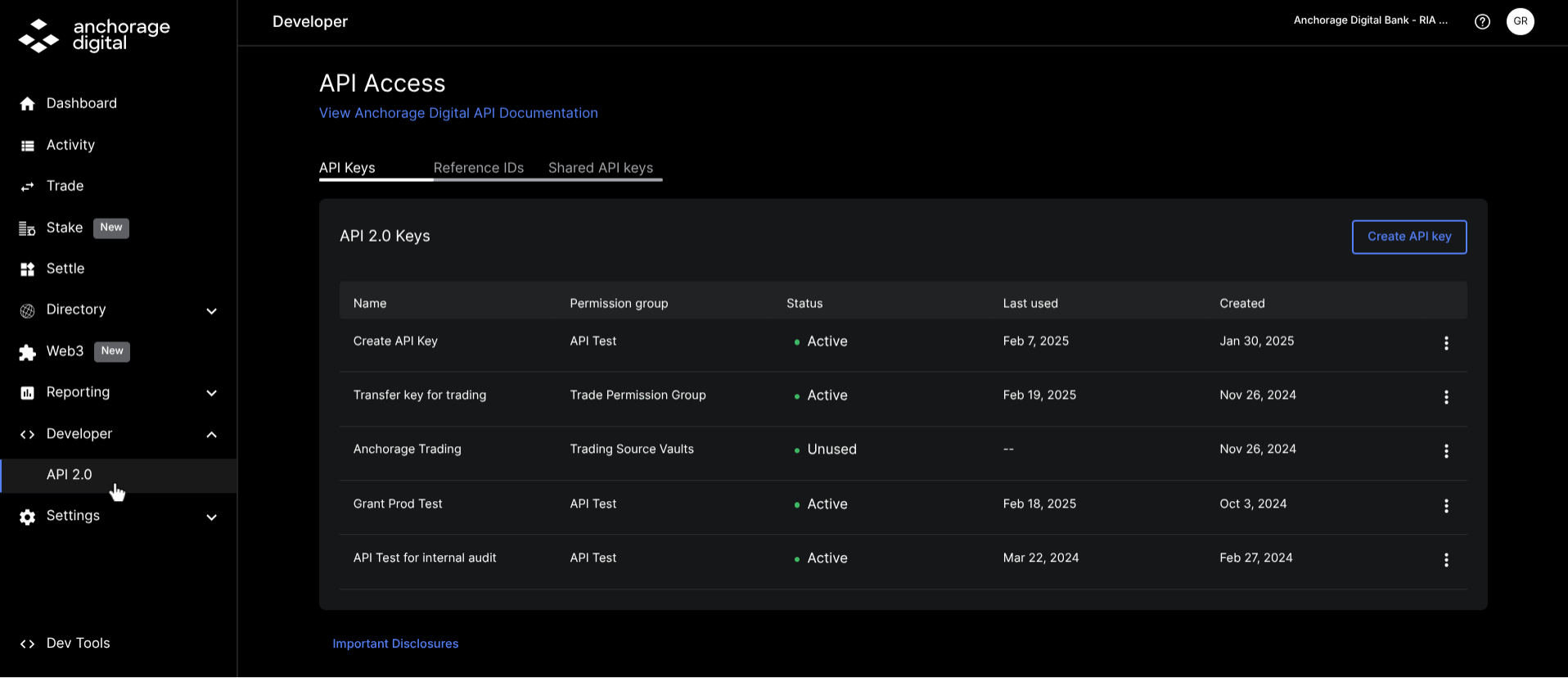

Step 6: Confirm the key creation process is complete

Verify that the key is ready to use by reviewing the API 2.0 keys table. The key status should be green and marked as "unused," after approval by the Anchorage Digital team.

API testing

For those who prefer to use API development environments like Postman for testing, you are able to test the read-only APIs directly in our documentation using your Sandbox API key (production keys will not work when testing in the on the docs above). However, for any write APIs, you will need to generate a signature to use the APIs which will need to be done outside of Postman or our reference docs.

Note: You can see example requests and responses for all endpoints in the reference docs.

API signing

• See Signatures page

Host URLs

• Sandbox: https://api.anchorage-staging.com/v2
• Production: https://api.anchorage.com/v2

Wealth manager sandbox setup

When setting up sandbox vs. production, note that some steps apply only to final production integrations (e.g., onboarding, trading, and settlement).

Sandbox onboarding and iOS app

Before testing, ensure that:

• You are onboarded to the sandbox iOS app and have access to the web dashboard.
• Onboarding details were received via email from Anchorage Digital.

Note: These steps may have already been completed by Anchorage Digital and onboarding and API key information will be shared over email. Once organization setup is completed, the wealth manager authorized and admin users will need to download the iOS application for the purpose of quorum approvals and creating API keys.

Sandbox testnet assets

While the sandbox provides a realistic simulation, it is a controlled environment, and all activities should be conducted with the understanding that it is for testing purposes only and only with testnet assets.
